Inter V-Lan Routing

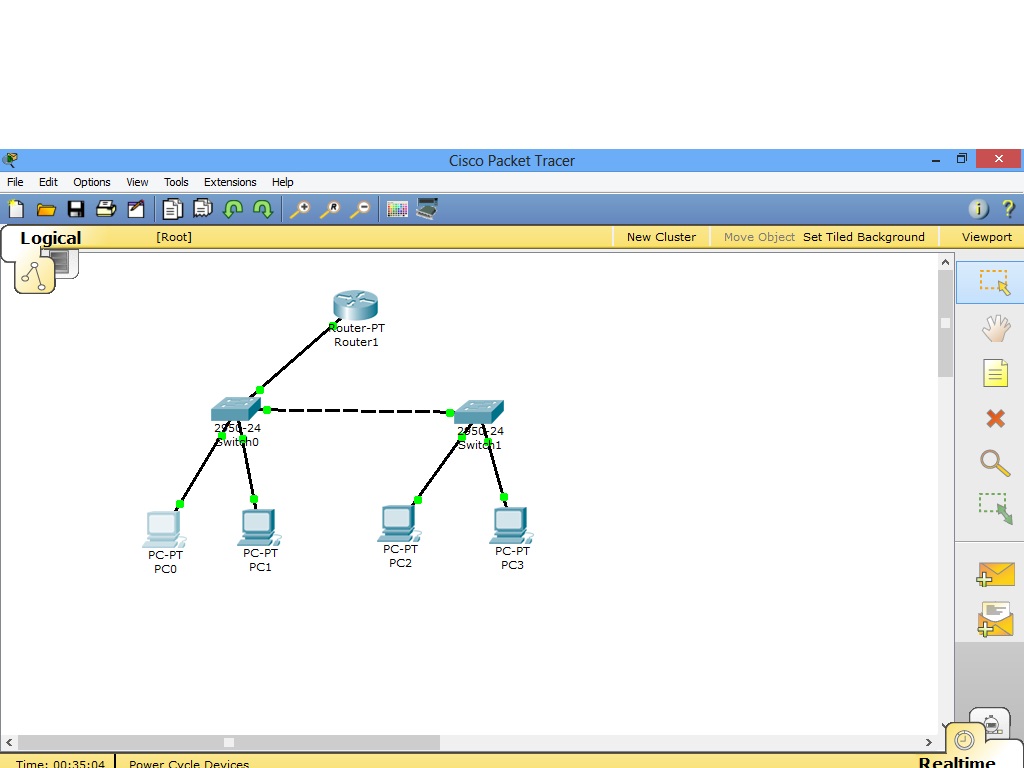

Pertama buat dulu nih gan komponenya seperti ganbar di bawah ini ni...

trus jangan lupa setting utama pada switch dan routernya gan
1.Setting Switch
Switch>ena
Switch#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Switch(config)#vlan 10
Switch(config-vlan)#name Dosen
Switch(config-vlan)#exit
Switch(config)#vlan 20
Switch(config-vlan)#name Mahasiswa
Switch(config-vlan)#exit
Switch(config)#int fa0/1
Switch(config-if)#switchport access vlan 10
Switch(config-if)#exit
Switch(config)#int fa0/2
Switch(config-if)#switchport access vlan 20
Switch(config-if)#exit
Switch(config)#int fa0/4
Switch(config-if)#switchport mode trunk
Switch(config-if)#exit
Switch(config)#int fa0/3
Switch(config-if)#switchport mode trunk

2.Setting Router
Router>ena
Router#conf t
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#no ip address
Router(config-if)#no shutdown

%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int fa0/0.10

%LINK-5-CHANGED: Interface FastEthernet0/0.10, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.10, changed state to up
Router(config-subif)#encapsulation dot1q 10
Router(config-subif)#ip addr 192.168.10.1 255.255.255.0
Router(config-subif)#exit
Router(config)#int fa0/0.20

%LINK-5-CHANGED: Interface FastEthernet0/0.20, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.20, changed state to up
Router(config-subif)#encapsulation dot1q 20
Router(config-subif)#ip addr 192.168.20.1 255.255.255.0
Router(config-subif)#exit
Router(config)#
Router#
%SYS-5-CONFIG_I: Configured from console by console

kelaar deh gan tinggal cek aja lewat coomand promptnya ,,,Semoga Bermanfaat ^_^
